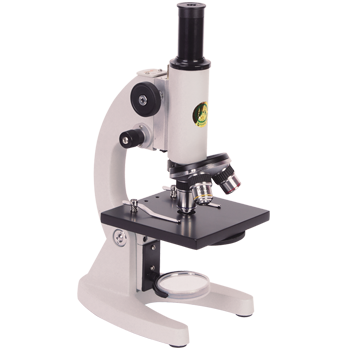

XSP-01/XSP-02
-

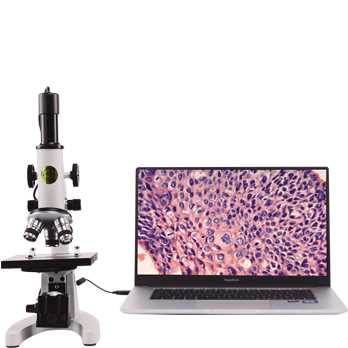

XSP-02P
-

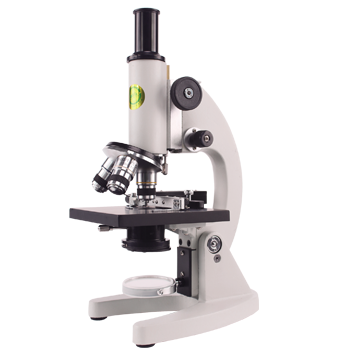

XSP-02
-

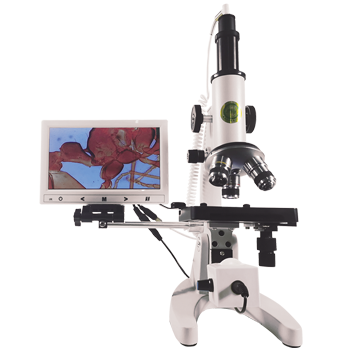

XSP-03/XSP-06
XSP-00 series biological microscope
- Description
- Features
- Download
-
XSP-00 series biological microscope is very suitable for observing biological slices and specimens in elementary and middle schools. It can also be used for routine inspection and analysis of biology and pathology in health inspection departments.
Main advantages:
● Mechanical tube length 160mm● Pure optical glass lens, coated optical components● All objectives are in parfocal and the center is consistent● Refined metal rack and pinion focusing mechanism, comfortable and stable, durable● Focusing limit mechanism, which can effectively avoid the damage of the objective lens and the glass slide● Anti-skid protection mechanism of the focusing hand wheel, prevent damage to the focusing system when the focusing is overloaded● Metal stage, anti-corrosion● Metal horseshoe-shaped base, sturdy and stable, the arm bracket can be tilted at 45°Product details:
● Eyepieces
Huygens H5X, H10X, H16X
● Achromatic objective
4X, 10X, 40X (spring), 100X (spring, oil)
● Metal die-casting fixed single-layer square stage,with slice clips
Size 120mmX120mm
● Focusing system
Coarse adjustment range: 50mm, 20mmFine adjustment range: 1.8-2.2mm
● Plano-Concave Mirror
Diameter: Φ50mm
● Abbe condenser
N.A.=1.25, iris diaphragm, filter holder
● Moving ruler
X axis ±20mm, Y axis ±15mm
● Package
Environmental protection wooden box, plastic box
-
XSP-00 Series Biological Microscope Main Parameters
Model Number
XSP-01
XSP-02
XSP-03
XSP-06
XSP-200X
Total
magnification
40X-500X 40X-640X 50X-1000X 50X-1600X 200X Observation tube
Monocular vertical tube Eyepiece
H10X，H12.5X H10X，H16X H5X，H10X H5X，H10X，H16X H12.5X Achromatic
Objective
4X, 10X, 40X(Spring)
4X, 10X, 40X(Spring)
10X, 40X(Spring),
100X(Spring, Oil)
10X, 40X(Spring),
100X(Spring, Oil)
Achromatic: H16X Nosepiece
Three holes Stage
Monolayer square working stage,with slice clips, area: 120mmX120mm Monolayer square working stage,
with moving ruler, area: 120mmX120mm
Monolayer square working stage, with slice clips, area:
84mmX88mm
Focusing
mechanism
Coarse focusing range: 50mm, fine focusing graduation: 1.8mm-2.2mm Coarse focusingrange 20mm Rotating
diaphragm
Φ3.2, Φ4, Φ5, Φ8, Φ15 / Condenser
Single lens, N.A.=0.65, dial diaphragm Abbe condenser, N.A.=1.25,iris diaphragm, filter holder / Illumination
Plano-concave mirror, Φ50mm Plano-concavemirror, Φ40mm Optional
accessories
Electric light source: LED, 1W Electric light source: Incandescent lighting, 220V/20W or 110V/20W -
