PH100-2A41L-EP
-
PH100-2A41L-PL
-
PH100-2B41L-IPL
-
PH100-3A41L-EP
-
PH100-3A41L-PL
-
PH100-3B41L-IPL

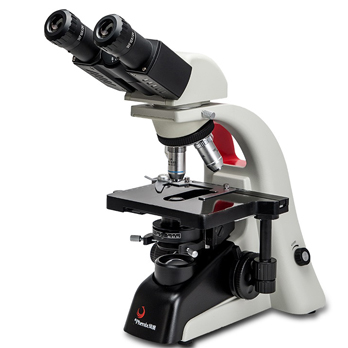

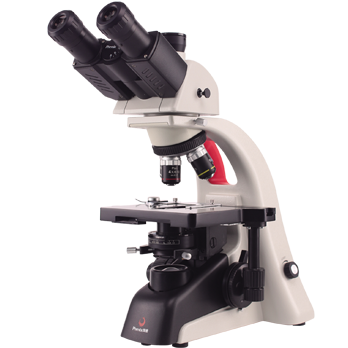

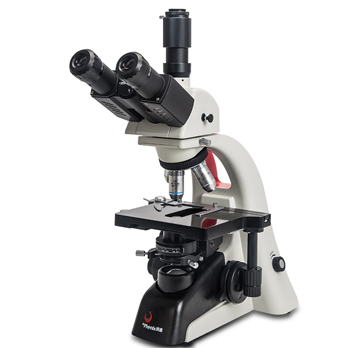

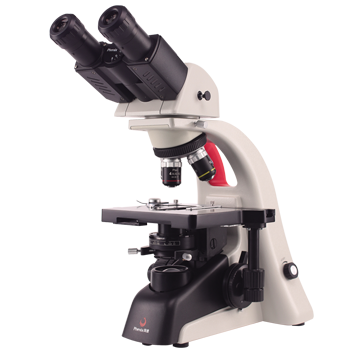

PH100 series biological microscope
share:
- Description
- Features
- Download
-
PH100 series laboratory biological microscope can be conveniently equipped with accessories such as photography, video, digital photography, professional fluorescence, professional polarization, phase contrast, dark field, etc. It is an ideal instrument for microbiological observation.PH100 series biological microscopes are available for teaching research, clinical experiments and scientific research analysis of biology, pathology and bacteriology in many institutions of higher learning, medical and health care, laboratories and scientific research institutes.
Product features:
● Adjustable trinocular tube
Adjustable trinocular tube, 30°inclined, 360° rotatable, interpupillary distance: 48-75mm
● Wide-field eyepiece
WF10X/Φ20mm, diopter adjustable
● Infinity objective
4X, 10X, 40X (spring), 100X (spring, oil)
● Double-layer mechanical moving stage, with double slice clips
Size: 160mmX142mm, moving range: 76x52mm
● Focusing system: coaxial coarse and fine adjustment
With hand wheel tightness adjustment and random positioning device, coarse focusing range : 22mm, fine adjustment: 0.002mm
● Lighting system: upper light source, bottom light source
Upper light source: 1W LED cold light source with lens (not standard, optional)Bottom light source: LED, 3W, compound eye lighting, adjustable brightness;Halogen lamp: 12V/20W, adjustable brightness.
● Power supply
External regulated power adapter DC6V/2A
-
PH100 series biological microscope main parameters
Moedel
PH100-2A41L-EP
PH100-3A41L-EP
PH100-2A41L0PL
PH100-3A41L-PL
PH100-2B41L-IPL
PH100-3B41L-IPL
Total Magnification
40X-1600X Viewing tube
Compensationbinocular,30°inclined,360° rotatable,interpupillarydistance:48-75mm Compensationtrinocular,30°inclined,360° rotatable, interpupillary
distance:48-75mm
Compensationbinocular,30°inclined,360° rotatable,interpupillarydistance: 48-75mm Compensationtrinocular,30°inclined,360° rotatable,interpupillarydistance: 48-75mm Infinitycompensationbinocular,30°inclined,360° rotatable,interpupillary distance:48-75mm
Infinitycompensationtrinocular,30°inclined,360° rotatable,interpupillary distance: 48-75mm
Eyepiece
Wide field WF10X/20mm, WF16X/15mm Objective
195N Achromatic objective PLAN Achromatic objective Infinity PLAN Achromatic objective
4X PLAN 4X IPL PLAN 4X 10X PLAN 10X IPL PLAN 10X 40X (Spring) PLAN 40X (Spring)
IPL PLAN 40X (Spring)
100X (Spring, Oil) PLAN 100X (Spring, Oil) IPL PLAN 100X (Spring, Oil) Nosepiece
Inner clined quadruble nosepiece, ball bearing inner locating Stage
Double-layer mechanical sliding stage, area: 160mm×142mm, moving range: 76mm×52mm, with two double slide clips Focusing
system
Coaxial coarse and fine focusing knob, with hand wheel tightness adjustment and random positioning device,coarse focusing range 22mm, fine focusing graduation: 0.002mm Condenser
Abbe condenser N.A=1.25, lift up and down, center adjustable, iris diaphragm Upper light
1W LED cold light source with lens (Non-standard, optional) Bottom light
LED cold light source, 3W, compound eye illumination, brightness adjustable Carema
interface
CCD simple adapter (All TV types including ccd adapter) Optional
accessories
WF10X/18mm, with eyepiece micrometer P10X/20mm P16X/15mm Objective: 25X、63X CCD camera interface: 1/3", 1/2" interface Digital camera interface: digital card camera interface Digital camera interface: digital SLR camera interface Dark field device Limited phase contrast device Infinity phase contrast device Epifluorescence Epi-polarization Epi metallography -
