PH20 series biological microscope
- Description
- Features
- Download
-
The PH20 series biological microscopes, the biological microscopes recommended by the new curriculum standards, are very suitable for observing biological slices and specimens in elementary and middle schools. It can also be used for routine inspection and analysis of biology and pathology in health inspection departments.
Product Features:
● Monocular observation tube
45° inclined, 360° rotatable
● Wild-field eyepiece
WF16X/11MM, WF10X/16MM
● Achromatic objective
4X, 10X, 40X(Spring)
● Mobile round stage, slice clamp
Diameter: 90, circular movement range: 6mm (with white frosted glass)
● Coarse and fine focusing on different axes
Coarse adjustment stroke: 10mm, fine adjustment accuracy: 1.8mm
● Lighting system
Plano-concave mirror, 40mmHigh brightness LED, cold light source, rechargeable, adjustable brightness
● Handle
Built-in handle, easy to take and move
● Power supply
External switching power supply (adapter), AC95V-250V
-
PH20 Series Biological Microscope Main Parameters
Model Number

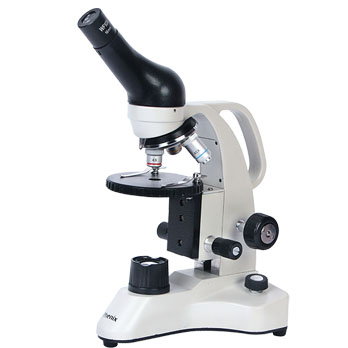

PH20-1A31L-A

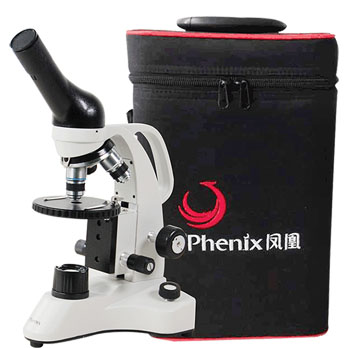

PH21-1600X

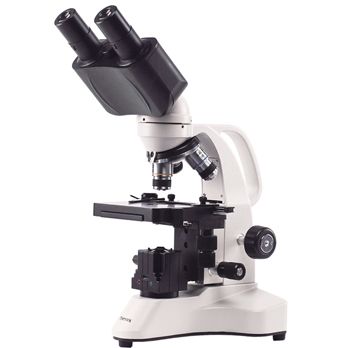

PH23
Total magnification
40X-640X 100X-1600X 40X-1000X Observation tube
Monocular tube,45°inclined,360° rotatable Monocular tube,45°inclined,360° rotatable Inclined binocular tube Eyepiece
Wide field,WF10X/Φ18mm,WF16X/Φ11mm Wide field,WF10X/Φ18mm,Huygens H16X/Φ11mm Wide field, WF10X Objective 195
Achromatic
4X, 10X, 40X(Spring)
10X, 40X(Spring), 100X(Spring, Oil)
4X, 10X, 40X(Spring), 100X(Spring, Oil)
Nosepiece
Three holes, inward Four Holes Nosepiece, outward Stage
Round stage with slice holder, diameter: Φ90mm,circumferential movement range:6mm (with white ground glass) Double-layermechanical stage, aluminum alloy casting,
moving range:
60mmX30mmFocusing mechanism
Different coarse and fine adjustment, coarse focusing range 10mm,fine focusing graduation: 1.8mm Condenser
/ High transmission condenser Illumination
High brightness LED, cold light source,rechargeable, adjustable brightness LED cold light sourcelighting, 1W LED, 400mAH rechargeable battery, with charging
indicator, stepless
adjustable light
source brightness
Power cord plug
220V/50HZ, Chinese standard Design for client Package
Foam+carton Nylon bag Foam+carton
-
