H200 series biological microscope adopts ergonomic design, unique shape, light structure, and built-in handle for easy access and movement. It is a cost-effective microscope that can be used for teaching and research in biology, bacteriology, etc. in schools and laboratories.
Product details:
● Eyepiece
WF10X/18mm, WF16X/15mm, WF20X (optional)
● Achromatic objective
4X, 10X, 40X (spring), 100X (spring, oil)
● Double-layer mechanical stage
120X115mm，76X40mm
● Coaxial coarse and fine focusing, tightness adjustable
Coarse adjustment stroke: 22mm, fine adjustment accuracy: 0.002mm
● Lighting system
Reflector (as an accessory)LED 1W, non-rechargeable, adjustable brightness
● Dimming system
Digital circuit, precise stepless dimming, no screen flicker
● Power supply
LED external switching power supply, input AC90V-240V, output DC 5V/2A
-
H200 Series Biological Microscope Main Parameters
Model Number
H215-A
H226-A
H236-A
Total magnification
40X-1000X Observation tube

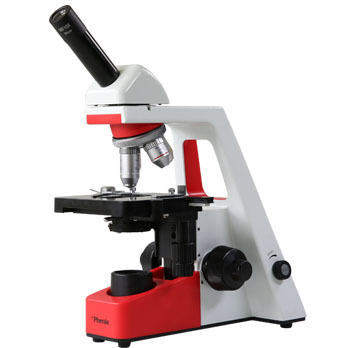

Monocular tube,45°inclined,360° rotatable Compensation binocular tube, 30°inclined, 360°
rotatable, interpupillary
distance: 48-75mm

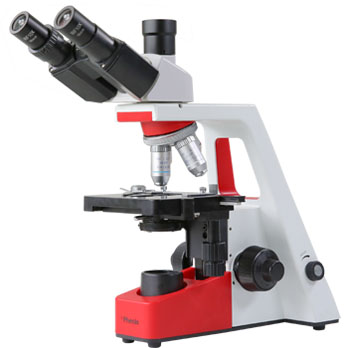

Compensation trinocular tube, 30°inclined, 360°
rotatable, interpupillary
distance: 48-75mm
Eyepiece
WF10X/18mm Objective
195 Achromatic
4X 10X 40X（Spring） 100X（Spring, Oil） Nosepiece
Four Holes Nosepiece Stage
Double-layer mechanical stage, automatic refocusing, 120X115mm,stroke 76x40mm (Abbe condenser, lifting ring up and down) Focusing mechanism
Coaxial coarse and fine adjustment, elasticity adjustable,
coarse focusing range 28mm, fine focusing graduation: 0.002mmCondenser
Abbe condenser, NA=1.25, iris diaphragm,center adjustable,lifting ring up and down Collecting mirror
Critical illumination Bottom light
Reflector (as an accessory) LED 3W, non-rechargeable, brightness adjustable Dimming system
Digital circuit, precise stepless dimming, no screen flicker Power supply
LED light use external switch power supply,input AC90-240V, output DC 5V/2A Others
/ 1X C-type interface -
