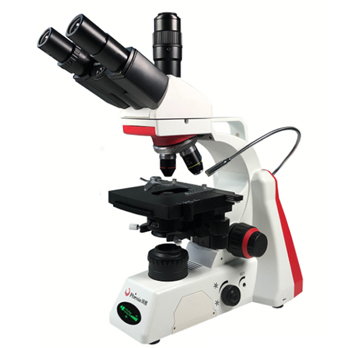

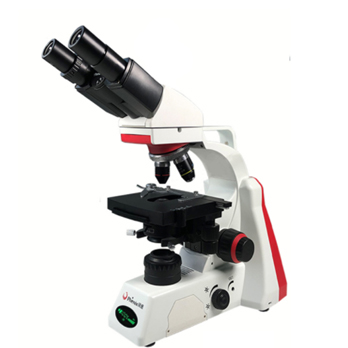

BMC100 series laboratory biological microscope adopts ergonomic design, with smooth lines and beautiful appearance. With intelligent LCD digital display window, it has ACT color temperature switching function and ECO intelligent sensor function.
Product Features:
● Ergonomic design, simultaneous visual observation and digital display at the same latitude● ACT color temperature switching function● ECO smart sensor function● EDF depth of field extension and image stitching function● Intelligent LCD digital display window● Observe physical specimens and have auxiliary lighting functionsProduct Details:

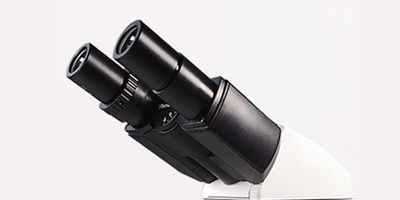

● Binocular and trinocular observation tube
Adjustable binocular tube, 30° tilt, lens tube can be rotated 360°

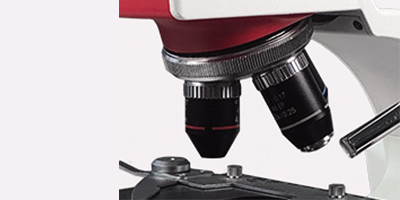

● Achromatic objective lens
4X, 10X, 40X (spring), 100X (spring, oil)

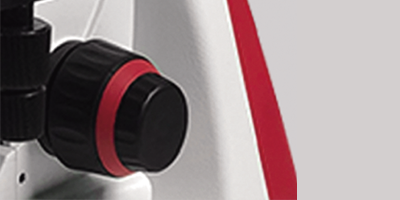

● Coaxial coarse and fine movement
Coarse movement stroke: 28mm, fine movement accuracy: 0.002mm
● Lighting system
Upper light source: USB flexible light, 360° lighting without any blind spotBottom light source: adjustable color temperature , 3W LED light

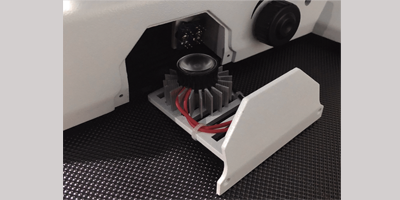

● Side-mounted drawer type light box

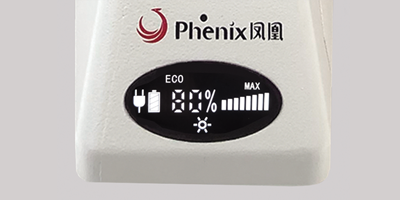

● Intelligent LCD digital display window
The ECO smart sensor function can automatically turn off the power after the user leaves for 30 minutesACT color temperature switching function, can adjust the light source brightness according to user needs
-
BMC100 Series Biological Microscope Main Parameters
Model Number
BMC100-A2
BMC100-A3
Total
magnification
40X-1000X Observation
tube
Binocular, 30° inclined,360° rotatable Trinocular, 30° inclined,360 ° rotatable Eyepiece
WF10X/18mm Objective
PH Infinity Achromatic Objective 4X 10X 40X(Spring) 100X(Spring, Oil) Nosepiece
Four Holes Nosepiece Stage
Curved double-layer mechanical platform, 140x140mm,stroke 76x52mm Focusing mechanism (gear drive)
Coarse and fine movement coaxial, adjustable elasticity,
micro movement accuracy: 0.002mm
Coarse movement stroke: 28mm,Condenser

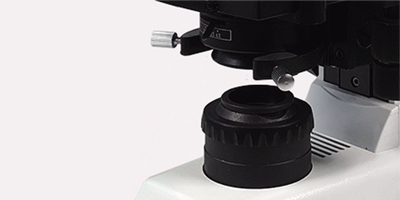

Abbe condenser, NA=1.25, iris diaphragm,center adjustable, handwheel lifting Collecting mirror
Critical illumination (Kohler illumination),adjustable field diaphragm Upper Light source
USB flexible light, 360° lighting without any blind spot Bottom light
3W color temperature adjustable LED, compound eye lighting,brightness adjustable, color temperature adjustable,right-side insertion and removal Intelligent sensing device
30 minutes delay induction shutdown Photoelectric Smart Display
LED intelligent display of the working status ofthe up and down lights and battery power Power supply
External regulated power adapter DC 5V/2A,Rechargeable battery 3.7V-1600mAh Others
0.5X C-type interface -
