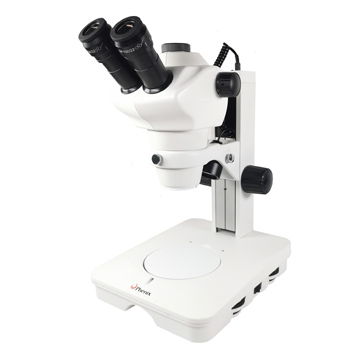

XTL-168 zoom stereo microscope
share:
- Description
- Features
- Download
-
XTL-168 zoom stereo microscope, adopting a unified standard design of the connecting tube. The new design improves the image quality of the third tube. The magnification of the connecting tube can be selected according to the size of the applied camera chip. Zoom ratio 1:6.3, wide-field eyepiece, magnification 8X-50X, also can expand the magnification range through auxiliary eyepiece and objective lens.

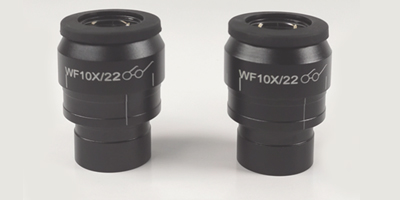

● High eye-point, large field of view eyepiece WF10X/Φ22mm

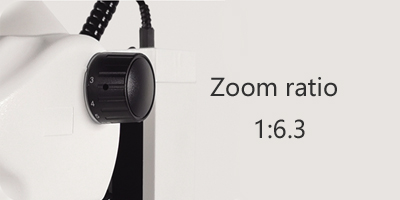

● Continuous zoom hand wheel, zoom ratio 1:6.3, clear imaging

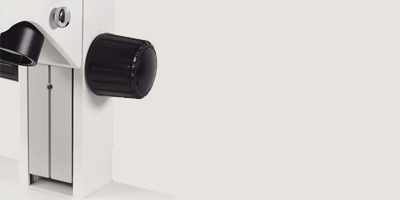

● Hand wheel lifting, adjusting working distance

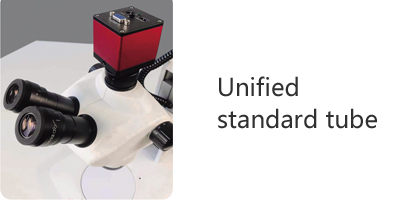

● Unified standard connection tube, convenient for camera connection
-
XTL-168 Product Main Parameters
Model
XTL-168-MB
XTL-168-MT
Magnification
8X-50X or 4X-200X(with optional auxiliary objective and eyepieces) Zoom ratio
Continuous zoom ratio 1:6.3 Viewing tube
Binocular viewing head,interpupillary distance52-75mm Trinocular viewing head,interpupillary distance 52-75mm, With standard
camera interface
Eyepiece
Wide field WF10X/F.N.22mm, High eye-point Large field Objective
Continuous zoom objective 0.8X-5X, par-focal Diopter
Binocular diopter adjustment range±6 Field of view
Φ5-Φ30mm Working distance
45mm-220mm Focusing system
Vertical arm type coaxial coarse and fine adjustment ,focusing range 60mm; bracket & stand integrated,focusing bracket diameter: 76mm Oblique light source
3W High-brightness LED light source, brightness adjustable , illumination angle adjustable Transmitted bottom light
3W high-brightness LED light source, brightness adjustable Base
Large square base with Φ125 frosted glass and blackand white supporting board Camera device
/ 1x CTV, Adjustable focus to ensure synchronization of visual and digital display Optional accessories

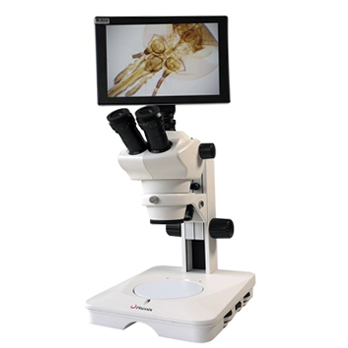

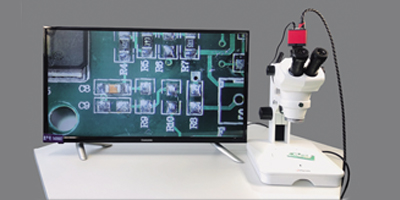

Wide field eyepiece WF20X/F.N.15mm / 0.5x CTV, Adjustable focus toensure synchronization ofvisual and digital display / USB digital camera system with optional pixels: 3M 5M 8M 10M 12M 16M / HDMI HD camera system with optional pixels: 2M 5M 14M / Android system LCD digitalintegrated touch screen,pixel optional: 5M 16M X-Y axis double-layer mechanical stage Additional objective lens (optional)
0.5X WD=220mm 0.7X WD=136mm 2X WD=45mm -
