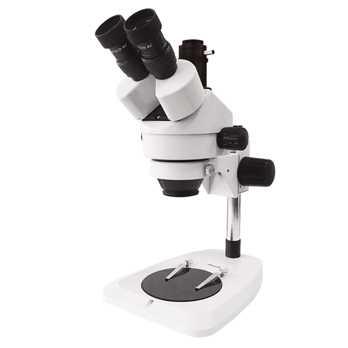

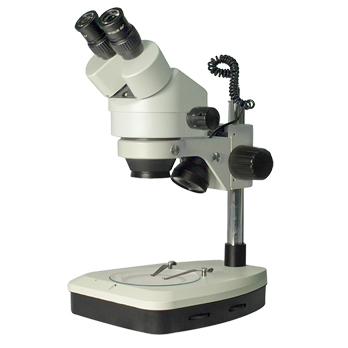

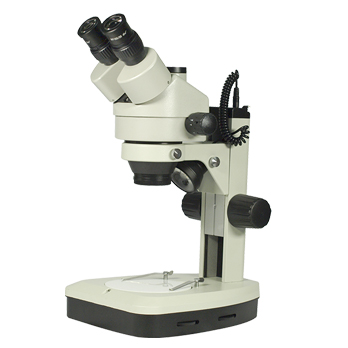

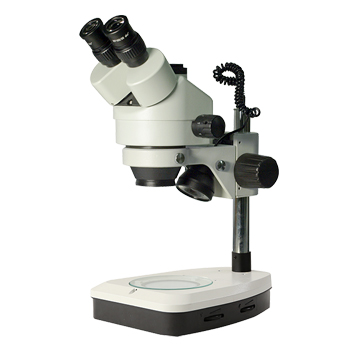

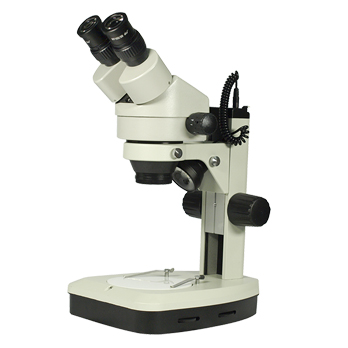

XTL-165 zoom stereo microscope
share:
- Description
- Features
- Download
-
XTL-165 zoom stereo microscope, upgraded large base design, variety options of bracket stand, zoom ratio 1:6.5, high eye point wide field eyepiece, ergonomic design with 45° observation angle, long-term use Not easy to fatigue. Horizontal zoom with two-hand wheels, make it more stable and comfortable to use. It can be widely used in various industries and fields such as machinery and electronics, industrial detecting, instrumentation, jewelry detecting and so on.● Trinocular observation tube

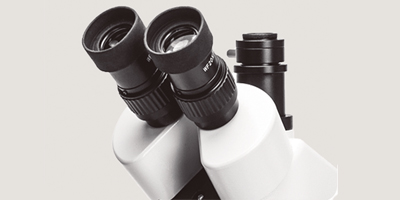

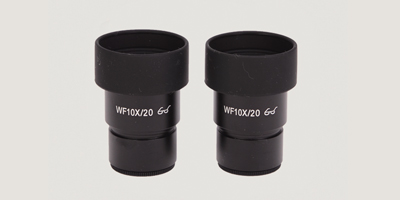

● High eye-point, wide field eyepiece WF10X/Φ20mm

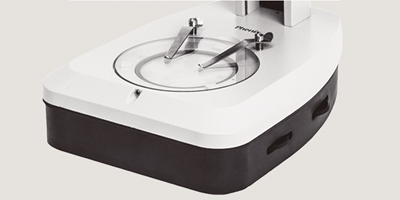

● Large base stage, size: 200x270mm

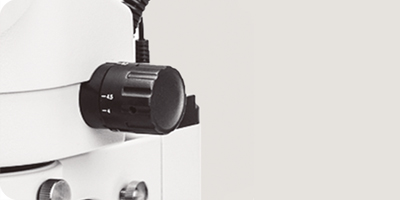

● Continuous zoom hand wheel, zoom ratio 1:6.5, clear imaging

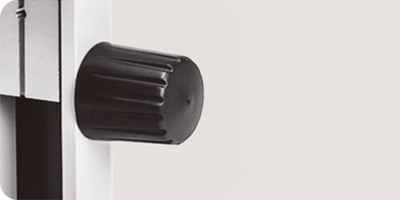

● Hand wheel lifting, easy to adjust working distance

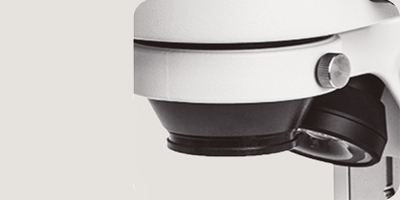

● LED lighting source, brightness adjustable
-
XTL-165 Zoom Stereo Microscope Main Parameters
Product model
XTL-165-MB
XTL-165-CB
XTL-165-MT
XTL-165-CT
XTL-165-LT
Total magnification
7X-45X 3.5X-180X(with auxiliary objectives and eyepieces)
Zoom ratio
1:6.5 Viewing tube
Compensation binocular head, 45°inclined, interpupillary distance 55-75mm Compensation trinocular head, 45°inclined, interpupillary distance 55-75mm Eyepiece
High eye-point, wide field, WF10X/Φ23mm Objective
Zoom objective, 0.7X-4.5X Diopter
Binocular diopter adjustment range ±6 Field of view
Φ5mm-Φ30mm Working distance
30-160mm Focusing range
100mm 50mm 100mm 50mm 50mm Upper light
LED light source, 3W, brightness adjustable / Bottom light
LED light source, 5W, brightness adjustable / Stand lifting range
60-165mm 20-185mm 60-165mm 20-185mm Package
Foam + Carton Others
CCEE Computer cable CCD adapter,CCEE Computer cable CCD adapter Optional
High eye point, Wide field：WF15X/WF20X Tablet PC( 9inch 5.0million pixels) VDE Computer cable Double boom universal stand -
