  • XTL-165-LCD200

  • XTL-165-LCD200

  • XTL-165-LCD200

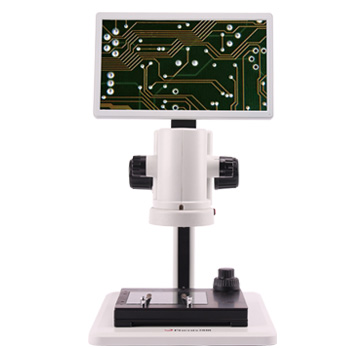

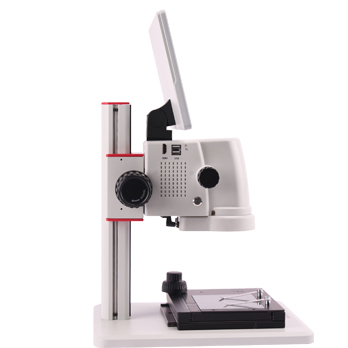

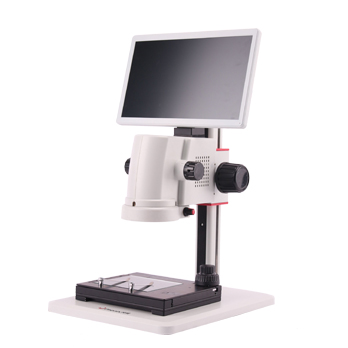

XTL-165-LCD HD tablet zoom stereo microscope

share:
  • Description
  • Features
  • Download
  • XTL-165-LCD HD tablet zoom stereo microscope, body & video integrated design, adjustable monocular tube with high-definition tablet, liberate your eyes; LED ring light source, uniform lighting, the model has long working distance, clear imaging. Multifunctional tablet, dual output of USB and HDMI, supports functions such as photographing, measuring, recording, image comparison, etc.

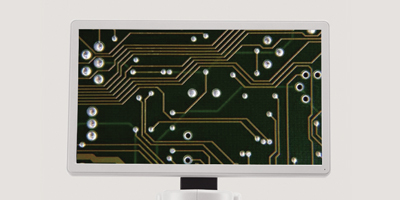

    ● HD tablet, support photo, measurement, video, etc.

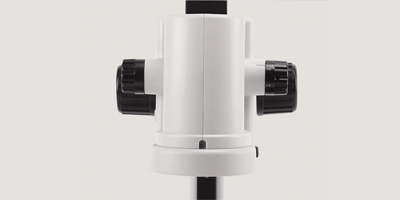

    ● Adjustable monocular tube, zoom ratio 1:6.5, focusing range 220mm

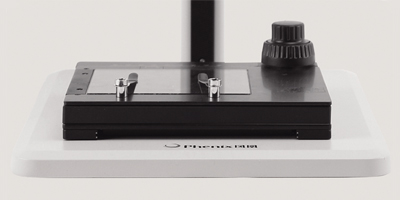

    ● Mobile stage, size: 321mmX261mm





  • XTL-165 HD Tablet Zoom Stereo Microscope Main Parameters


    Product model

    		XTL-165-LCD200

    Total magnification

    		24X-160X, 48X-320X, 12X-80X

    Zoom ratio

    		1:6.5

    Viewing tube

    		Adjustable monocular tube

    Working distance

    		100mm (can be increased to 165mm)

    Light source

    		LED ring light/brightness adjustable

    Power

    		DC 12V/2A

    Stand

    		Arm bracket: 330 mm/focusing range 220mm

    Base

    		321mmX261mm

    Image sensor

    		1/3 inch

    Resolution

    		1920*1080P@60FPS（2.0 mp ）

    Sensor size

    		3.75*3.75μm

    Effective pixels

    		High definition

    Output interface

    		HDMI、USB、TF   card

    Functions

    		Identification function: point coordinates, crosshair, coordinate system, text annotations
    Length measurement: straight line length, broken line length, curve  length, parallel line distance, point line distance
    Distance between two circles: radius fixed circle, two-point fixed circle, three-point fixed circle
    Geometric measurement: line segment length, radius fixed circle, two-point fixed circle, three-point fixed circle, concentric circle
    Geometric area: polygon, square
    Image snapshot: support 2 million still photos
    Video recording: support 1080P recording
    Other functions: vertical rotation, horizontal mirroring, monochrome  image, frozen image, image comparison

    Optional

    		Mobile stage: X-Y mobile platform (55X75 moving range)
    Grid plate: 0.2mm grid plate
    Additional lens: 0.5X/2X additional lens
    USB flash disk : 8G/16G/32G (optional)
