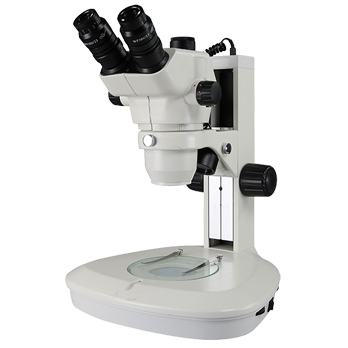

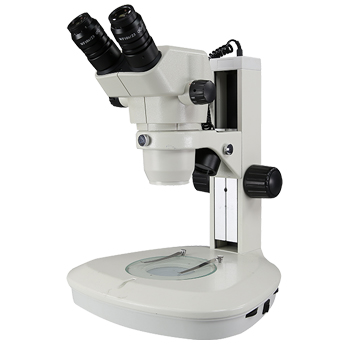

SMZ180 series zoom stereo microscope，Sliding binocular and trinocular observation, adopting WF10X/23mm ultra-wide field of view eyepieces, adjustable diopter, zoom ratio 1:8.0, ultra-large depth of field, clear imaging, and wide field of view. It is an ideal instrument for various industries and fields such as textile industry, agriculture and forestry, machinery and electronics.Product advantages:
● Extra long working distance, large depth of field
● Clear imaging and wide field of view

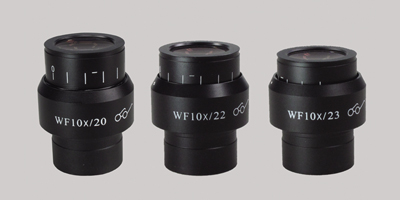

Product features:● The eyepiece adopts plan field, distortion-free design, high eye-point observation, large field of view (field of view up to Φ23mm), diopter adjustable .

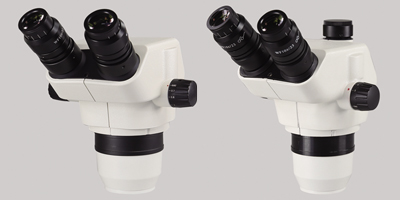

● Sliding binocular or trinocular head, 45° inclined, interpupillary distance 52-75mm. Continuous zoom adjustment touch feels comfortable, 0.62X-5X (1:8) continuous zoom, the entire stroke image is in focus.

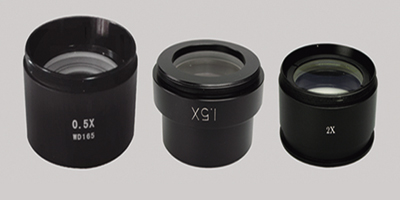

● Choose different auxiliary objectives, 0.5X, 1.5X, 2.0X, 2.5X, which makes the zoom range wider and the working distance selection range larger.

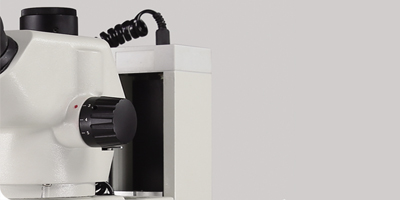

● Continuous zoom hand wheel, optical zoom 0.62-5X
-
SMZ180 Product Main Parameters
Product model
SMZ180-LB
SMZ180-LT
Total magnification
6.2X-50X or 3.1X-250X (with auxiliary objective and eyepieces) Zoom ratio
Zoom 1:8.0 Viewing tube
Sliding trinocular head, 45°inclined, interpupillary distance 52-75mm Sliding binocular head, 45°inclined, interpupillary distance 52-75mm Eyepiece
High eye-point, wide field , diopter adjustable WF10X/Φ23mm Objective
Zoom objective, 0.62X-5X Diopter
Binocular diopter adjustment range ±6 Field of view
Φ4.6mm-Φ37mm Working distance
110mm Focusing range
60mm Upper light
LED light source，1W, brightness adjustable Bottom light
LED light source，1W, brightness adjustable Stand lifting range
According to the different stand, different lifting range Optional
Wide field eyepiece：WF15X, WF20X LED ring light Photography adapter: digital camera adapter, SLR digital adapter Camera adapter: 0.5X, 0.65X, 1X C adapter Double boom universal stand -
