BMC532-FLED-B
-
BMC533-FLED-B

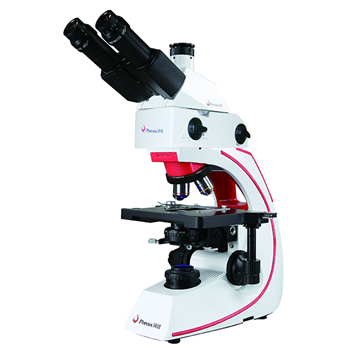

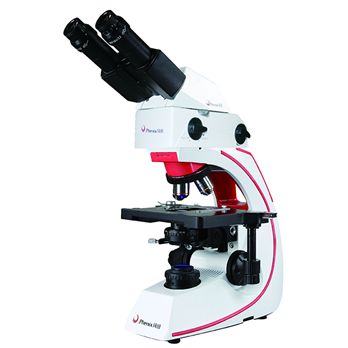

BMC500 series fluorescence microscope
share:
- Description
- Features
- Download
-
BMC503-FLED-B Main Techical Parameters
Fluorescent DeviceWave segment: B excitation light color filter componentsBand parameters: stimulate EX460-490, color seperation DM505, BA515 endUpper light : LED 3W, brightness adjustableLighting switching: up and down lighting can be switched freelyOptical partsMagnification: 40X-1600XViewing head: Infinity compensation trinocular head, 30°inclined, 360° rotatable, interpupillary distance 48-75mmEyepiece: high eyepoint, large field of view, no distortion, diopter adjustable , WF10X/20mm, WF16X/16mmObjective: ICCF Infinity Plan High Contrast Achromatic, HC PLAN 4X/0.10, 10X/0.25, 40X/0.65 (Spring), 100X/1.25 (Spring,Oil)Nosepiece: Quadruble four holes, inward , steel ball positioningStage: Double Layer Mechanical Moving Stage, can hold two slice, size 188×145mm, Moving range 76×54mmFocusing system: Coaxial Coarse and Fine focusing knob, coarse adjustment 20mm, fine adjustment 0.001mm, with hand wheel elastic adjustment, Random limit locking mechanismCondenser: Full Koler Abbe condenser, N.A.=1.25, iris diaphragm, concentrator center adjustableKoler Lighting: Full Koler illumination, adjustable field diaphragmBottom ligh: LED 3W , no flickers, brightness adjustablePower : external switch power supply, input AC 90-240V, output DC 6.5V -
BMC500 series of single-band LED excitation fluorescence microscope ,designed for the detection of tuberculosis diagnosis and other individual design,optional modules of different color filters,easy to inplement different fluorescence observation requirements.
LED lighting does not heat, no radiation, light intensity continuously adjustable, long service life. Compared with traditional high-pressure mercury lamps, LED lighting without preheating or cooling, directly lighting, shortening the preparation time and improving work efficiency.

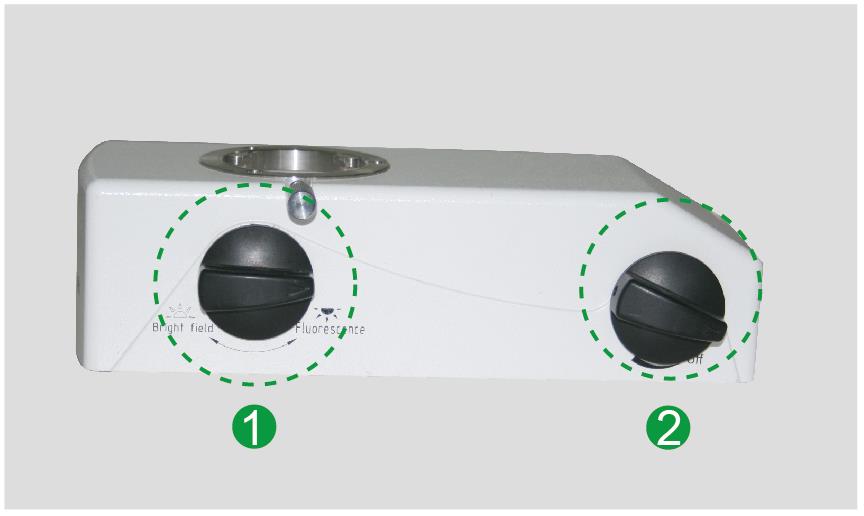

1. Bright field/fluorescence switching According to the actual application requirements, the rotating bright field/fluorescence switching knob can realize the switching of two observation methods. 2. Brightness adjustment knob

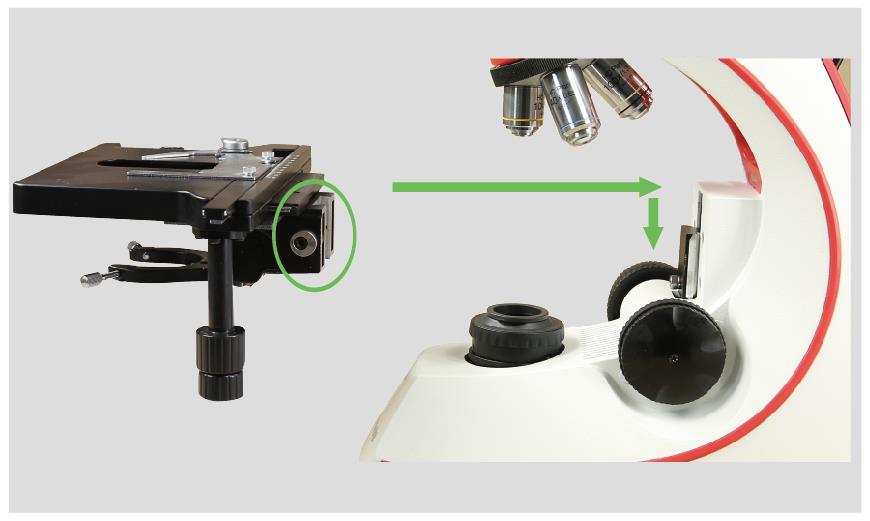

Double-layer mechanical moving platform, triangular steel column guides up and down, can hold with two slicesThe platform is detachable, anti-corrosive, anti-mild, and wear-resistantLarge area: 188mm × 145mm, long stroke: 76mm × 54mm -
