PH-MD17AT/BT metallurgical microscopes
share:
- Description
- Features
- Download
-

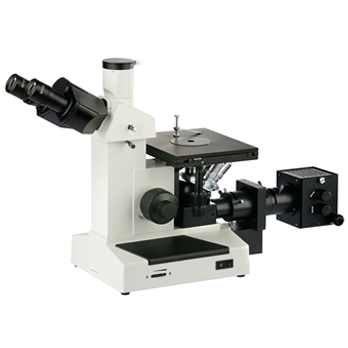

PH-MD17AT/BT metallurgical microscopes are used for identification and analysis of the structures in different metals and alloys. They are the important instruments for researching metallography in metal physics. The instruments can select special photography device to take euploid pictures of atlas metallograph. The instruments are suitable for scientific research,colleges and factory.
Product details:
● Observation System

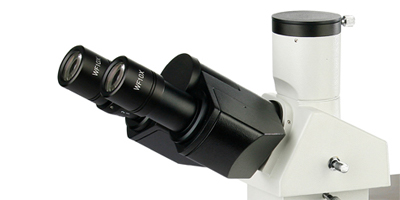

Binocular, single diopter adjustment, inclined 30°, comfortable& good-looking. Trinocular can be connected to the camera. 10X wide field plan eyepiece, field 18mm, can provide an expanse and smooth space for observation.
● Mechanical stage

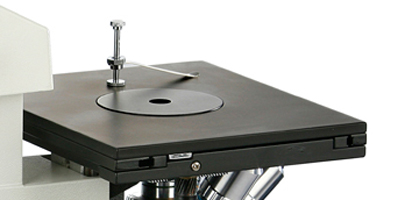

The mechanical movable stage has a built-in rotatable circular stage plate, which can be rotated during polarized observation to meet the requirements of polarized microscope inspection.
● Illumination system
Kohler illumination, aperture diaphragm and field diaphragm can be adjusted through the dial, the adjustment is smooth and comfortable, the optional polarizer can adjust the polarization angle by 90 degrees to observe the microscopy in different polarization states image.
● Photography unit
High-definition digital video recording and video observation can be realized by configuring video observation accessories (CCD adapter, digital camera adapter, digital SLR camera adapter, etc.). -
PH-MD17AT/PH-MD17BT Metallurgical Microscope Parameters
Model
PH-MD17AT
PH-MD17BT
Observing tube
Trinocular, Inclination of 30° Eyepiece
Wide field WF10X (Φ18mm) Objective
Plan achromatic objectives withlong working distance (no cover glass)PL 10X/0.25 Achromatic objectives (no cover glass) 10X/0.25 Plan achromatic objectives withlong working distance (no cover glass)PL L20X/0.40 Achromatic objectives (no cover glass) 20X/0.40
Plan achromatic objectives withlong working distance (no cover glass)PL L40X/0.60 Achromatic objectives (no cover glass) SP 40X/0.65 Plan achromatic objectives withlong working distance (no cover glass) PL 100X/1.25 (Spring, oil)
Achromatic objectives (no cover glass) 100X/1.25 (Spring, oil)
Nosepiece
Quadruple (Ball bearing inner locating) Focus system
Coaxial coarse/fine focus system, with tensional adjustable and up stop,minimum division of fine focusing: 2μm Stage Double layer mechanical (Size: 180mmX150mm, moving range: 15mmX15mm) Filter
Blue filter Green filter Yellow filter Illumination unit 6V 20W halogen lamp, brightness control Optional accessories
Name
Sort/Technique parameter
Eyepieces tub Binocular, Inclination of 30° Eyepiece
Wide field WF16X (Φ11mm) Dividing 10X (Φ18mm) 0.1mm/Div Objective
Plan achromatic objectives with long working distance (no cover glass)PL 50X/0.12 Plan achromatic objectives with long working distance (no cover glass)PL L 60X/0.75 (Spring) Plan achromatic objectives with long working distance (no cover glass)PL L 100X/0.85 (Spring) Achromatic objectives (no cover glass) 60X/0.85 Nosepiece Quintuple (Ball bearing inner locating) Simple polarizing unit
Polariser Polarization analyzer CCD adapter
0.4X 0.5X 1X 0.5X with dividing 0.1mm/Div Camera
USB output: USB2.0 USB3.0 5.0mp, 6.0mp, 10.0mp, 14.0mp, 20.0mp optional HDMI output: 2.0mp, 5.0mp, 8.0mp, 14.0mp optional Digital camera adapter
CANON(EF) -
