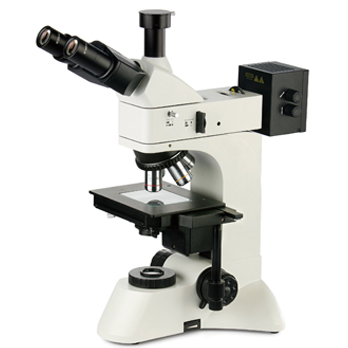

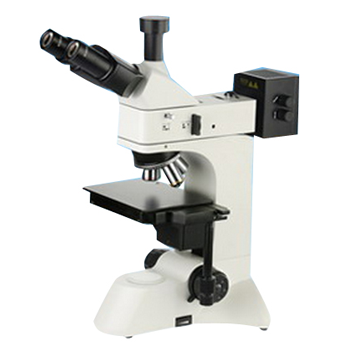

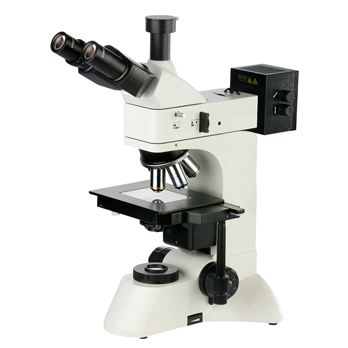

PH-M3203/3220/3230/3230BD series upright metallurgical microscopes
share:
- Description
- Features
- Download
-
PH-M3203/3220/3230/3230BD series upright metallurgical microscopes are suitable to observe surfaces of opaque object or transparent object.Thet are equipped with excellent UIS optical system and modularization function design so that provited excellent optical quilatity and operation performance,update system expediently and provided observation in refelected or transmitted and mixed illumination,polarizing observation ,dark field observation.These instruments have beautiful sculpt,convenient control and clear image.They are the ideal instruments in research work in biology,metallography,mineralogy,precision engineering,electronics,etc.
Product details:
● Observation system

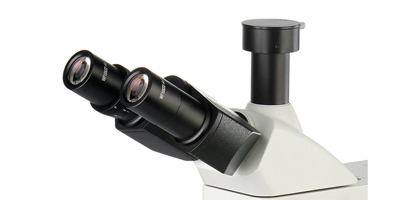

Compensation observation tube: Trinocular, single diopter adjustable, 30° inclined, can be connected to the camera.Eyepieces: WF10X wide field plan eyepiece, field Φ22mm, can provide an expanse and smooth space for observation.Objective: Infinity plan achromatic objective (no cover glass)
● Stage

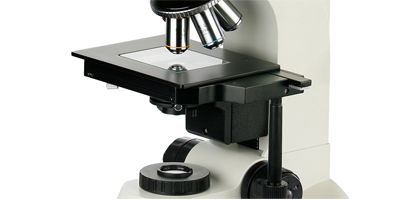

Double-layer mechanical stage, size: 210mmX140mm; moving range: 75mmX50mm, moderate design concept, users are more convenient and comfortable to operate the stage.

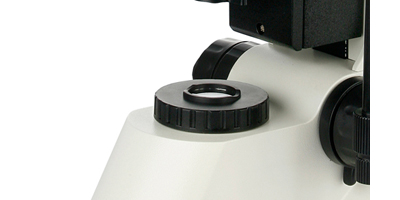

● Transmission lighting system
Built-in halogen lamp illumination and integrated field diaphragm it can provide clear and bright image.PH-M3230: 6V 30W halogen lamp, brightness adjustablePH-M3230BD:12V 30W halogen lamp,brightness adjustable PH-M3230/M3230BD: Equipped with blue filter and frosted glass PH-M3220: Equipped with blue, yellow and green color filters and frosted glass, the field diaphragm is built in the condenser, and the Abbe condenser N.A.1.25 can be moved up and down.

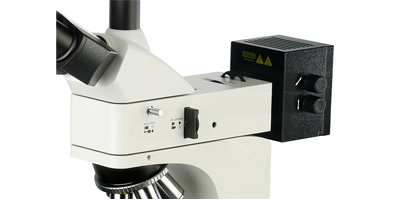

● Epi-illumination system
Halogen lamp illumination, brightness adjustable.Integrated field diaphragm, aperture diaphragm and filter switching device. Push-pull type analyzer and polarizer.Rotary disc filter set, with three color filters of yellow, green, and blue and frosted glass, to provide different chromaticity of illumination for observing various samples.The clamshell light box design makes it easier and faster to replace the bulb.
● Dark field observation
Equipped with high-quality bright and dark field objectives and dark field illumination device. Avoid the stray light of illumination system and improve the image quality in the dark field. (PH-M3230BD)● Photography unit
High-definition digital video recording and video observation can be realized by configuring video observation accessories (CCD adapter, digital camera adapter, digital SLR camera adapter, etc.). -
PH-M3230/M3230BD Metallurgical Microscope Parameters
Eyepiecea tube
Trinocular inclined 30°, can be shot in 100% light flux Eyepiece
WF10X(field number: φ22mm) Infinity plan achromatic objective
PH-M3203/3220/3230(Equipped with brightfield objectives) PL L5X/0.12 Working distance: 26.1mm PL L10X/0.25 Working distance: 20.2mm PL L40X/0.60 Working distance: 3.98mm PL L60X/0.70 Working distance: 2.08mm PH-M3230BD(Equipped with bright & darkfield objectives) PL L5X/0.12 BD Working distance: 8.05mm PL L10X/0.25 BD Working distance: 7.86mm PL L20X/0.40 BD Working distance: 7.2mm PL L40X/0.60 BD Working distance: 3.0mm Nosepiece
Quintuple (Backward ball bearing inner locating) Focus system
Coaxial coarse/fine focus system, with tension adjustable and limit stopper,minimum division of fine focusing: 2um Stage
Double layer mechanical stage, overall size: 210mmX140mm,moving range: 75mmX50mm Epi-illumination system
PH-M3203/3220/3230 6V 30W, halogen lamp and adjutable brightness PH-M3230BD 12V 50W, halogen lamp and adjustable brightness PH-M3203/3230/3230BD euipped with Y.B.G filters and ground glass PH-M3220 euipped with Y.B.G filters Integrated field diaphragm, aperture diaphragm and filter switching device.Push-pull type analyzer and polarizer. Transmitted illumination system
Abbe condenser N.A.=1.25 Rack & pinion adjustable Collector for halogen lamp illumination and integrated field diaphragm PH-M3230/3230BD euipped with B filter and ground glass PH-M3220 euipped with B.G filters and ground glass PH-M3220/3230 6V 30W, halogen lamp and adjutable brightness PH-M3230BD 12V 50W, halogen lamp and adjustable brightness Optional Accessory
Eyepiece
Dividing eyepiece(φ22mm) Objective
PH-M3203/3220/3230 20X, 50X, 80X, 100X(Dry), Bright field objective PH-M3230BD 50X, 60X, 80X, 100X bright & dark field objective CCD adapter
0.5X, 1X, 0.5X(With dividing) Camera
USB output: 1.3M/2.0M/3.0M pixel Video output: 380/520 TV Line Digital camera adapter
CANON(EF)，NIKON(F) -
