PH100-DB310U-EP
-
PH100-DB500U-IPL
-
PH100-DB500U-PL

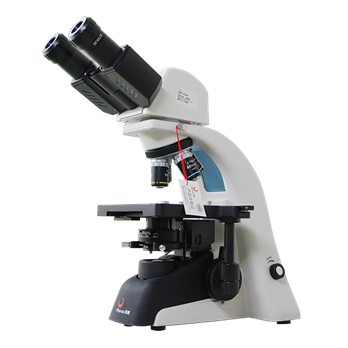

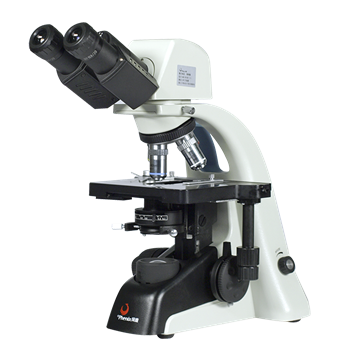

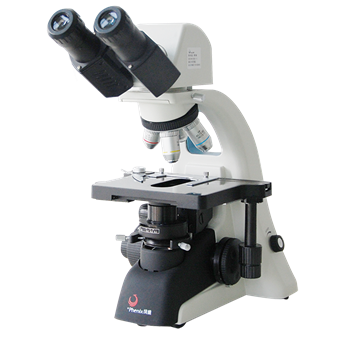

PH-100 series digital microscope
share:
- Description
- Features
- Download
-
PH-100 Series Digital Microscope Main Technical Parameters
Digital imaging system: imported chip, 2 million to 20 million pixels, signal output: USB2.0/usb3.0Image software functions: manual / automatic exposure, manual / automatic white balance, photo, video, image editing, measurement, image color adjustment, image overlay, particle counting, etc.Optical magnification: 40X-1600XViewing head: digital compensation free binocular head, 30°inclined, 360° rotatable, interpupillary distance 48-75mmEyepiece: Wide field, diopter adjustable, WF10X/20mm, WF16X/15mmObjective: Achromatic/ Plan Achromatic/Infinity Plan Achromatic 4X, 10X, 40X (Spring), 100X (Oil ,Spring)Nosepiece : Quadruple, four holes inward ,steel ball positioningWorking Stage : Double layer mechanical moving stage, can hold two slice clipsSize 160×142mm , moving range 76×52mm
Focusing system: coaxial coarse and fine focusing knob , coarse adjustment 22mm, fine adjustment 0.002mmCondenser: Abbe condenser, N.A.=1.25, iris diaphragmLight source: LED, 3W, Compound eyes lighting, adjustable brightnessPower : external switching power supply, AC100-240V -
※ Seamless connection between Digital photoelectric imaging and optical system; ※ CCD/CMOS camera is really built-in, accurate internal positioning; ※ Original photoelectric imaging splitting structure eliminates the need for push-pull rods to ensure adequate and uniform illumination at any magnification; ※ There is no need to re-adjust the coarse adjustment to ensure that the observation under the binocular is completely synchronized with the computer display; ※ Excellent image quality, like sharp and no color difference, the image is flat and clear.
-
