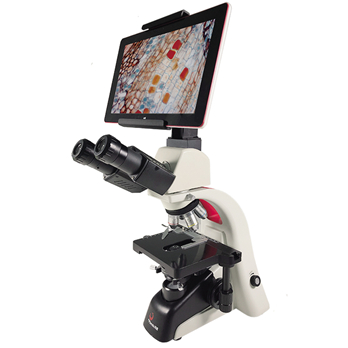

PH100-PB-W1
-

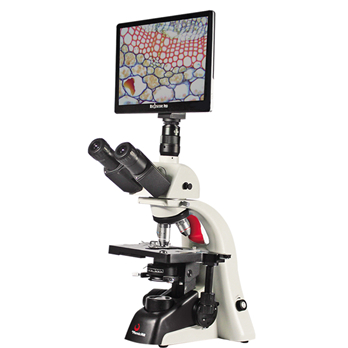

PH100-PB-W2
PH100 series tablet microscope
share:
- Description
- Features
- Download
-
Part Specification PH100-PB-W1 PH100-PB-W2 Image acquisition system Operating system :WIN10；10.1 inch capacitive touch screen, resolution 1920*1080, frequency: 1.44GHz core number: quad-core, running memory: 2GB, graphics card: graphics card: Intel HD Graphic; ports: WIFI, OTG, USB, HDMI, Bluetooth 4.0, speakers ,microphone √ 16 million pixels Windows integrated smart touch industrial-grade tablet, high-definition screen with 1080P resolution; 11.6-inch IPS capacitive touch screen; imported high-resolution image sensor, good color reproduction, high clarity and height; 1/2.33 inch, 1.35x1.35 microns, 1 /2.3 inch progressive scan; WIN10 genuine operating system; 4G DDR 64G solid state hard drive; Interface: USB3.0, HDMI; RJ45 network port; built-in WIFI (optional) √ Built-in CCD/CMOS camera, 5 million pixels (optional 2 million to 16 million), digital field of view is not less than 80%, convenient and quick to observe, take pictures, and transmit √ √ Microscopic image processing software for windows, software functions: manual/automatic exposure, manual/automatic white balance, photographing, video recording, image editing, measurement, image color adjustment, image overlay, particle counting √ √ Microscopic image processing software Android version, software functions: manual/automatic exposure, photo, video, measurement, image color adjustment Viewing Head Built-in Digital compensation binocular head,30° inclined,interpupillary distance 48-75mm.(360° rotatable) √ Compensation trinocular head,30° inclined,interpupillary distance 48-75mm.(360° rotatable,with push-pull rod) √ Eyepiece High eyepoint，Wide field，diopter adjustable,WF10X20mm,WF16X16mm √ √ Objective EP Achromatic Objective 4x，10x，40X（Spring），100x（Spring,Oil） √ √ Plan Achromatic Objective4x，10x，40X（Spring），100x（Spring,Oil） Infinity Plan High-contrast Achromatic Objective IPL 4x，10x，40X（Spring），100x（Spring,Oil） Nosepiece Inner inclined quadruple nosepiece,ball bearing inner locating √ √ Focusing System Coarse & fine coaxial focusing knob,coarse focusing range 22mm，fine focusing graduation 0.002mmAdjustable elasticity, random positioning and locking device √ √ Stage Double-layer mechanical mobile platform, double slice clamp size:160mm×142mm ，move range:76mm× 52mm √ √ Condenser Abbe condenser N.A.=1.25,with iris diaphragm,moving up and down,center adjustment,with filter holder. √ √ Light collecting lens critical illumination, large-aperture light collecting lens √ √ Upper light High-power LED, universal lighting (optional, non-standard) Transmission light source LED cold light,brightness adjustable √ √ Power supply external switching power supply, input AC90-240V, output DC 6V/2A √ √ -
Phenix PH100 series digital biological tablet microscope adopts ergonomic modular design, large-screen high-definition LCD screen, smooth operation, wide field of view, clearer imaging, and long-term observation is not easy to fatigue. Built-in handle, easy to take and move.The product can be used in high school education, clinical diagnosis, scientific research, laboratories and other high-end applications.High-definition large-screen touch panel, long-life LED light source, adjustable brightness, compound eye illumination, higher brightness and more uniformity.
-
