BMC500-PB-W1
-
BMC500-PB-W2

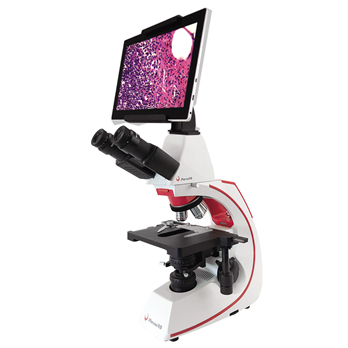

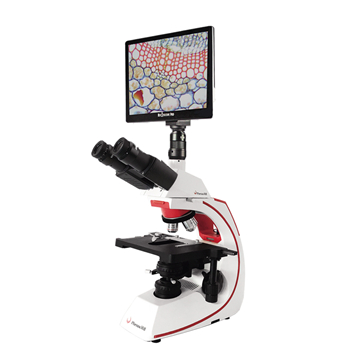

BMC500 series tablet microscope
share:
- Description
- Features
- Download
-
Part Specification BMC500-PB-I-WIN BMC500-PB-II-WIN BMC500-PB-AN Image acquisition system Operating system :WIN10；10.1 inch capacitive touch screen, resolution 1920*1080, frequency: 1.44GHz core number: quad-core, running memory: 2GB, graphics card: graphics card: Intel HD Graphic; ports: WIFI, OTG, USB, HDMI, Bluetooth 4.0, speakers ,microphone √ √ Android operating system 5.1; 9.7-inch capacitive touch screen, memory capacity: 2GB; supports full-duplex video codec with resolution up to 1080P and high frame rate, quad-core Cortex-A17, frequency up to 1.8GHz, peripheral interface: USB2. 0, HDMI, LAN network interface; support WI-FI wireless access, support Bluetooth; support large-capacity SD memory card, maximum support 32G C10 high-speed card √ Built-in CCD/CMOS camera, 5 million pixels (optional 2 million to 16 million), digital field of view is not less than 80%, convenient and quick to observe, take pictures, and transmit √ √ √ Microscopic image processing software for windows, software functions: manual/automatic exposure, manual/automatic white balance, photographing, video recording, image editing, measurement, image color adjustment, image overlay, particle counting √ √ Microscopic image processing software Android version, software functions: manual/automatic exposure, photo, video, measurement, image color adjustment √ Optical system Infinity achromatic correction optical system, magnification率40X-1600X √ √ √ View head Infinity gemel-style binocular tube,30° inclined,360° rotatable,interpupillary distance 48-75mm √ Infinity gemel-style trinocular tube,30° inclined,360° rotatable,interpupillary distance 48-75mm √ √ Eyepiece High eyepoint wide field,diopter adjustable,WF10X20mm,WF16X16mm √ √ √ Infinity Plan High-contrast Achromatic Objective HC PLAN 4x，10x，40X（Spring），100x（Spring,Oil） √ √ IPL 4X，10X，40X（Spring），100x（Spring,Oil） √ Nosepiece Inner inclined quadruple nosepiece,ball bearing inner locating √ √ √ Focusing System Coarse & fine coaxial focusing knob,coarse focusing range 20mm,fine focusing graduation 0.001mmAdjustable elasticity, upper limit adjustable, random positioning √ √ √ Stage Double layer mechanical stage,size 188*145mm,moving range 76*54mm,can hold 2 slides √ √ √ Condenser Full Kohlar Abbe condenser N.A.=1.25,with iris diaphragm,moving up and down,center adjustment,with filter holder. √ √ √ Light collecting mirror Full Kohlar illumination, adjustable field diaphragm √ √ √ Upper light High-power LED, universal lighting (optional, non-standard) Bottom light LED cold light,3W/halogen light, 6V/30W(Light source is interchangeable, halogen lamp is optional, not standard configuration) ,Stepless adjustment light,no screen flashing √ √ √ Power Switch power,wide voltage,Input AC 90-246V.Putout:DC 6.5V/5A √ √ √ -
Phenix 500 series of high-level biological microscope experiments,the use of new and unique phenix completely customize"ICCF infinit corrected colour free optical system"designed to achieve the performance,quality,appearance and enhance the comprehensive breakthrough,with internationally renowned brand compared to the same products,the overall performance full beyond,is highly cost-effective product.The product can be used in higher education, clinical diagnosis, scientific research, laboratories and other high-end applications
-
