Stock code：600071
-
12FA1224-25MP
-
12FA1624-25MP
-
12FA2524-25MP
-
12FA3524-25MP
-
12FA5024-25MP

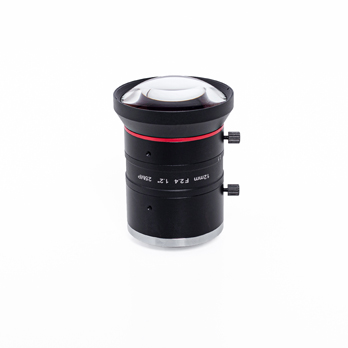

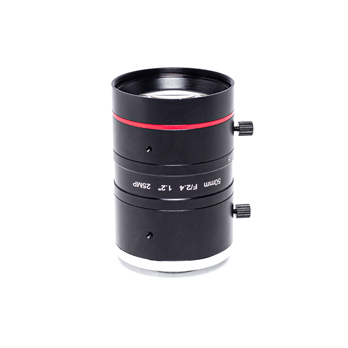

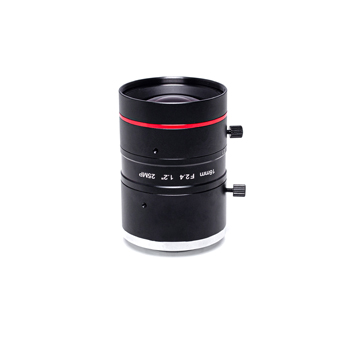

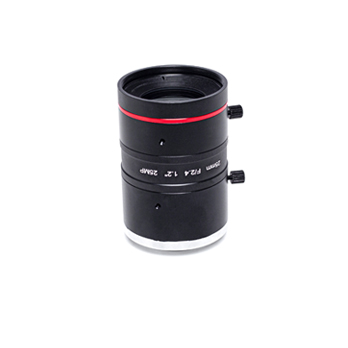

25MP 1.2" Low-distortion Industrial Lens
- Description
- Features
- Download
-
Compatible with the latest 1.2" camera
Backward compatible with 1" and 1.1" camera
25MP ultra high resolution perfectly fits the requirement of high-end machine vision
型號查詢
Model
12FA1224-25MP
12FA1624-25MP
12FA2524-25MP
12FA3524-25MP
12FA5024-25MP
光圈(mm)
Focal Length
12mm
16mm
25mm
35mm
50mm
像面厚度(φ)
Image Size
φ19.3
φ19.3
φ19.3
φ19.3
φ19.3
手機像素寬度(μm)
Pixel Size
2.74μm
2.74μm
2.74μm
2.74μm
2.74μm
光圈范圍圖(F數)
F-Number
F2.4-16
F2.4-16
F2.4-16
F2.4-16
F2.4-16
工作的距里(mm)
Working Distance
100mm-∞
100mm-∞
150mm-∞
150mm-∞
250mm-∞
把控好
Control
光圈
Iris
帶有大量手動 Manual
人工 Manual
手動 Manual
一鍵 Manual
速騰自動檔 Manual
集焦
Focus
手動擋 Manual
人工機械 Manual
全自動 Manual
人工 Manual
清理 Manual
這幾天物距視場空間(mm)
Minimum Object Distance
FOV
-149.68 x -129.48
-105.17 x -90.98
-88.89 x -76.71
-63.65 x -55.06
-74.71 x -64.63
視場角(°)
Angle of View
1.2"
62.33x55.33x76.12
48.83x42.86x61.36
31.42x27.32x41.19
22.51x19.53x29.33
15.66x13.57x20.50
1.1"
54.5x54.5x71.6
42.12x42.12x57.24
27.58x27.58x38.32
19.1x19.1x26.76
13.28x13.28x18.76
1.0"
56.2x43.6x71.08
43.46x33.24x53.04
28.52x21.58x35.3
19.76x14.9x24.54
13.76x10.34x17.22
區分率
Resolution
25MP
25MP
25MP
25MP
25MP
TV崎變
(附近物距至無窮遠******失真值)
Max TV Distortion
0.870
0.073
-0.106
-0.072
0.062
系數任務范圍TV輪廓
(200mm-400mm)%
Optimal TV Distortion
0.390
0.070
-0.040
0.015
0.011
模塊
Mount
C
C
C
C
C
美顏圖片尺寸(mm)
Filter Size
M40.5*0.5
M37*0.5
M40.5*0.5
M40.5*0.5
鏡頭時厚度(mm)
Dimension
φ50*66.96
φ42.5*59.76
φ40*58.44
φ42*59.32
φ42*61.16
毛重(g)
Weight
218.5
189.5
161.7
174
179
水溫超范圍(°)
Operating Temperature
-10~+50℃
-10~+50℃
-10~+50℃
-10~+50℃
-10~+50℃
-
-
